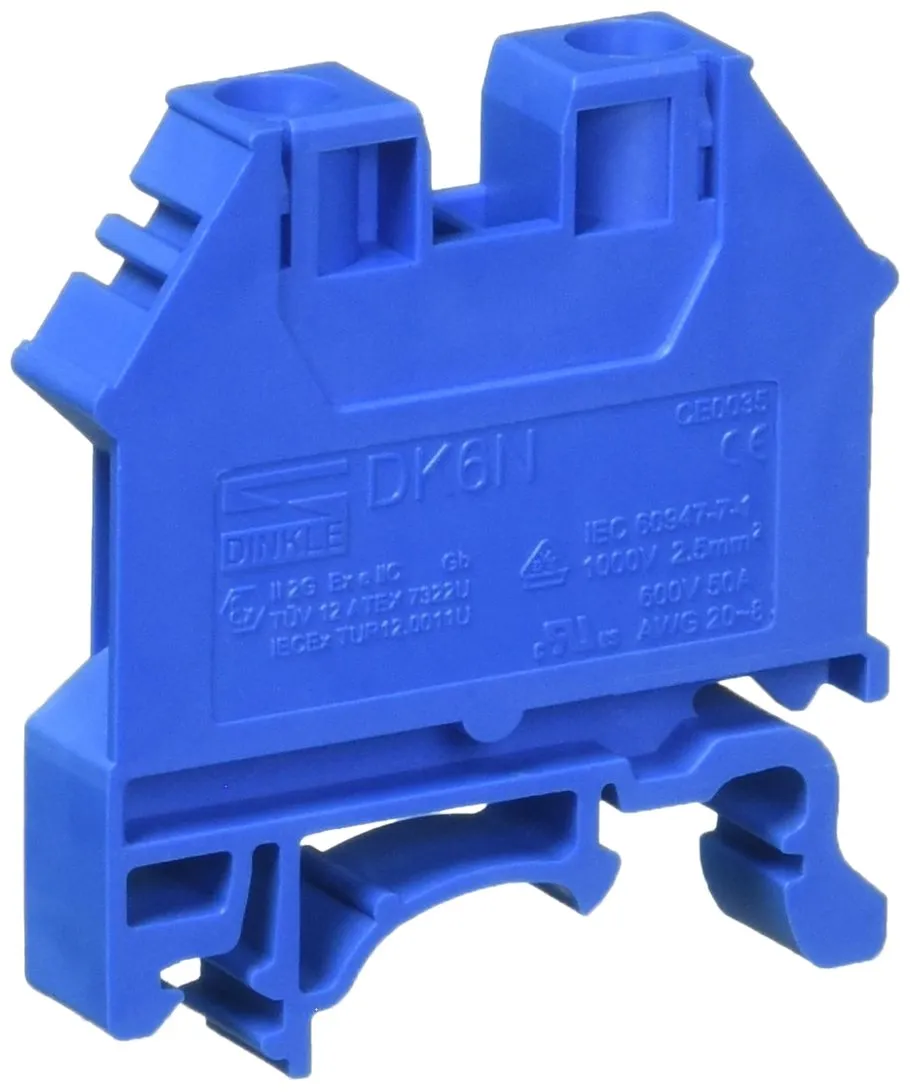

Dinkle DK6N-BL has a compact design that saves wiring space. The high reliability and robust design adapts vibration and harsh thermal variation to prevent terminal connection fault. Rated voltage: UL 600V, IEC 1,000 V. Rated current: UL 50A, IEC 41A. Conductor cross-section, solid(AWG/mm2): UL 20-8, IEC 0.5-6. Conductor cross-section, flexible(AWG/mm2): UL 20-8, IEC 0.5-6. Rated impulse withstand voltage: 8KV. Torque(N-m): 1.2. Screw: M4. Wire strip length: 12-14mm. Insulating material: PA. TxHxW(mm): 8 x 45 x 41.75. End cover DK6NC. Jumper DSS6N-02P, DSS6N-03P, DSS6N-10P. Marking label TM28W.

• Product Dimensions : 0.31 x 1.64 x 1.77 inches; 2.8 Pounds
• Date First Available : March 31, 2016
• Manufacturer : Dinkle
• Country of Origin : Taiwan
